Australian Driveshaft Pty Ltd. delivers durable, high-performance PTO shafts built for the demanding conditions of vertical tillage operations across Australia’s broadacre landscapes.
Vertical tillage has transformed soil management in Australian dryland cropping, allowing farmers to maintain stubble cover while breaking compaction and incorporating residues lightly. These machines rely on reliable power transfer from tractor to implement, where PTO drive shafts face dust, variable loads, and wide operating angles in expansive fields from Western Australia’s wheat belt to Queensland’s grain zones.
Over years working with growers in regions like the Riverina and Mallee, we’ve seen how quality shafts reduce downtime during critical seeding windows. One operator in New South Wales shared how upgrading to reinforced telescopic designs eliminated mid-season failures, letting him cover more hectares without interruptions.
In harsh, low-rainfall environments, shafts must handle shock loads from rocky subsoils while compensating for tractor-implement misalignment over uneven terrain.
Core Technical Specifications
| Parameter | Details | Typical Values |
|---|---|---|
| Series Classification | North American or Metric | Series 4-8 or Size 5-10 |
| Tractor Yoke | Spline configuration | 1-3/8″ 6-spline or 21-spline |
| Implement Yoke | Connection type | Quick disconnect or bolted |
| Tube Profile | Shape for torque | Triangular, lemon, or star |
| Closed Length | Compressed measurement | 900mm to 1800mm |
| Extended Length | Maximum reach | Up to 2500mm |
| Telescopic Overlap | Safety minimum | At least 1/3 tube length |
| Operating Angle | Maximum deflection | Up to 80° with CV joints |
| Torque Capacity (540 rpm) | Continuous rating | Up to 1000 Nm |
| Torque Capacity (1000 rpm) | Higher speed rating | Up to 800 Nm |
| Horsepower Rating | Tractor compatibility | 50-200 HP |
| Cross Journal Diameter | Bearing size | 27mm to 45mm |
| Needle Bearing Type | Retention | Triple lip sealed |
| Guard Material | Protective covering | High-impact plastic |
| Guard Rotation | Free spinning | 360° with bearings |
| Lubrication Interval | Grease points | 8-50 hours |
| Safety Device Options | Overload protection | Friction clutch or shear bolt |
| Clutch Torque Setting | Adjustable | 800-2000 Nm |
| Weight | Per meter approx. | 15-30 kg |
| Balance Grade | Vibration control | G16 or better |
| Material | Shaft tubes | High-tensile steel |
| Surface Treatment | Corrosion resistance | Powder coat or galvanized |
| Certification | Compliance | ASABE/ISO standards |
| Warranty | Coverage period | 12-36 months |
| CV Joint Option | Constant velocity | For wide angles |
| Overrunning Clutch | Freewheel | For inertial loads |
| Tube Wall Thickness | Strength | 3-6mm |
| Yoke Forging | Process | Hot forged |
| Dynamic Testing | Torque cycles | >1 million |
| Impact Resistance | Shock absorption | 150% rated |
| Temperature Range | Operating | -20°C to 80°C |
| Dust Protection | Sealing | Multi-lip |

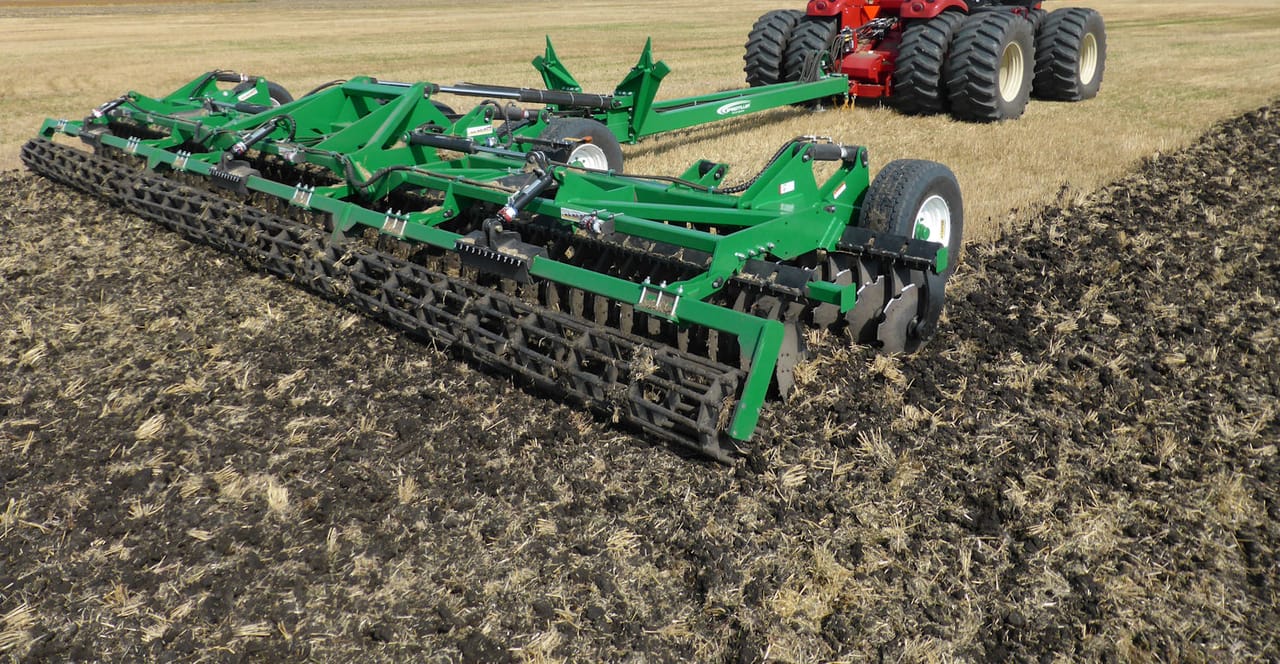

These specs suit common vertical tillage setups in Australia, from disc-based soil finishers to aerators used before seeding cereals or pulses.
Vertical Tillage Practices Across Australian Regions
In Western Australia’s vast wheat fields, vertical tillage helps manage stubble from high-yield harvests while controlling weeds without full inversion. Shafts here endure long runs and abrasive sands.
New South Wales mixed farming zones use these tools for residue sizing ahead of canola or legume plantings, demanding shafts with robust guarding against crop wrap.
Victorian high-rainfall areas focus on compaction alleviation in heavy clays, where wide-angle CV shafts maintain smooth power in undulating paddocks.
Queensland’s summer-dominant grains benefit from light incorporation of cover crop residues, with dust-resistant designs proving essential.
Safety and Regulatory Considerations in Australia
All our PTO shafts comply with relevant Work Health and Safety guidelines from Safe Work Australia, emphasizing full guarding and regular inspections. Designs incorporate ASABE-inspired features like integrated chains and free-rotating covers to prevent entanglement risks common in rural operations.
Farmers often note the importance of proper length matching to avoid excessive angles or separation during headland turns.
Compatibility and Performance Notes
Our Australian Driveshaft Pty Ltd. products serve as direct replacements for established lines from brands like Comer and Bondioli & Pavesi, matching dimensions and performance in vertical tillage applications. (Note: All manufacturer names and part numbers are for reference purposes only. Australian Driveshaft Pty Ltd. is an independent manufacturer.)
Key Components and Maintenance Items
Cross and bearing kits, safety guards, friction clutches, yokes, and telescopic tubes form essential spares. Regular greasing and guard checks extend life in dusty conditions.
Field Insights from Australian Growers
A Western Australian operator running a large disc tiller reported seamless seasons after fitting overload clutches, protecting both shaft and gearbox from hidden obstacles. In the Riverina, a family farm appreciated the quick-disconnect features for efficient implement swapping between tillage and seeding.
<video controls> <source src=”https://example.com/vertical-tillage-pto-demo-australia.mp4″ type=”video/mp4″> Demonstration of PTO shaft performance on a vertical tillage machine operating in typical Australian stubble conditions, highlighting smooth power delivery and safety features. </video>
Complementary Gearbox Offerings from Australian Driveshaft Pty Ltd.
We manufacture a comprehensive range of gearboxes that integrate perfectly with our PTO shafts for vertical tillage and broader agricultural needs. Parallel shaft models provide reliable speed reduction for implement drives, built with hardened gears to handle variable loads from soil engagement.
Right-angle bevel gearboxes suit offset applications, delivering torque multiplication in compact forms ideal for mounted tools. Ratios span from 1:1 to 1:3.92, matching common tractor PTO speeds to optimal blade rpm.
Multiplier gearboxes increase output for high-speed finishing tools, while pump drives support hydraulic functions on advanced machines.
Housings in cast iron or aluminum balance strength and weight, with options for forced lubrication in continuous operations. Sealed designs resist dust ingress prevalent in Australian conditions.
Integrated overrunning clutches prevent back-drive during deceleration, protecting tractor components. Torque settings match our shaft capacities for unified system protection.
Custom input and output configurations accommodate various flange patterns, ensuring drop-in compatibility with popular vertical tillage brands.
Cooling fins and oil sight glasses aid monitoring in hot climates, while breather vents handle temperature fluctuations.
Mounting bases allow versatile installation, from direct shaft to frame attachment.
Our helical gear sets minimize noise and vibration, contributing to operator comfort over long days.
Planetary gearboxes offer high ratios in small packages for specialized aerators or deep rippers preceding vertical passes.
Surface treatments include epoxy paints for corrosion resistance in coastal or irrigated areas.
Full traceability on materials supports quality assurance, with testing to agricultural duty cycles simulating Australian field stresses.
Pairing our gearboxes with matching PTO shafts creates complete drivelines optimized for fuel efficiency and longevity.
Recent installations in broadacre setups achieved measurable reductions in fuel use through precise ratio selection.
Accessories like oil coolers, filters, and adapters complete packages for demanding environments.
Engineering support includes load calculations and system balancing recommendations.
Stocked items ensure quick delivery across states, minimizing seasonal delays.
Whether for primary tillage prep or standalone finishing, our gearboxes complement vertical tillage operations reliably.
Recent Australian Agricultural News Highlights
Growers continue expanding conservation practices, with reports from early 2026 noting increased adoption of controlled traffic alongside vertical tillage to further protect soil structure amid variable seasons. Equipment updates focus on wider working widths and hybrid tools blending vertical and minimal disturbance.
Contact Australian Driveshaft Pty Ltd. for expert advice on PTO shafts and gearboxes suited to your vertical tillage needs.
FAQ
How do I correctly measure and size a PTO shaft for my vertical tillage machine?
Attach the implement to your tractor, raise it slightly off the ground, and measure from the tractor PTO groove to the implement input groove. Subtract 75-100mm for safe overlap and movement. Ensure at least one-third overlap when fully extended to prevent separation or end thrust damage.
What safety features should I look for in a PTO shaft for Australian conditions?
Choose shafts with full 360-degree rotating guards, integrated chains to prevent spinning, and overload protection like friction clutches or shear bolts. All must comply with Safe Work Australia guidelines for entanglement prevention in dusty, stubble-heavy fields.
How often should I grease and maintain the PTO shaft in dry Australian environments?
Grease universal joints every 8-20 hours of use, more frequently in dusty conditions. Check telescopic sections for smooth movement, clean guards regularly, and inspect for wear before each season to avoid seizures common in low-rainfall areas.
Can I use a standard PTO shaft or do I need a wide-angle CV joint for vertical tillage?
For machines that lift high or operate on undulating ground, wide-angle constant velocity (CV) joints up to 80 degrees prevent vibration and binding. Standard joints suffice for flatter work but limit angles to 25-35 degrees for longevity.
What are signs that my PTO shaft needs replacement or repair?
Look for excessive play in joints, bent yokes, cracked guards, unusual noise, or vibration. In abrasive soils, rapid wear on crosses or tubes signals issues—replace promptly to avoid gearbox damage or separation during headland turns.
